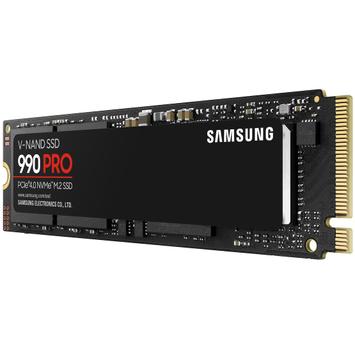

SAMSUNG g 990 PRO MZ-V9P1T0BW - SSD - encrypted - 1 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption 2.0

990 PRO NVMe M.2 SSD 1TB

• The Ultimate SSD
  • Reach max performance of PCIe® 4.0. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.
• PCIe 4.0 Speed Maximised
  • Huge speed boost. 990 PRO offers sequential read/write speeds up to 7,450/6,900 MB/s reaching near the max performance of PCIe® 4.0. 40% and 55% faster random read/write speeds than 980 PRO 2TB - up to 1,400K/1,550K IOPS, while 4TB has an even higher random read speed of up to 1,600K IOPS
• Breakthrough power efficiency
  • More power-efficient performance. Higher performance usually consumes more power but, 990 PRO uses less power with up to 50% improved performance per Watt over 980 PRO. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.
• Smart thermal solution
  • Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.
• Game like a pro
  • Secure victory with 990 PRO's expanded 4TB capacity, empowering you with a random read speed of up to 1,600,000 IOPS. Witness faster loading times on your PC and PlayStation® 5, as it breathes life into your games.
• Samsung Magician software
  • Run your SSD your way with Samsung Magician software—a suite of simple tools to maintain high SSD performance. Transfer data quickly and safely, track drive health, and get the latest firmware updates.
• Choose the sure thing
  • We call them files and folders — but they’re really the moments you can’t lose, from the plays you cherish to the work you’ve poured yourself into.
  • When you've got everything to lose, choose the sure thing - trusted performance, solid protection, and the peace of mind that stays with every moment. Choose Samsung SSD.

• Application Client PCs, Game Consoles
• Rated Capacity 1,000GB (1GB=1 Billion byte by IDEMA)
• Form Factor M.2 (2280)
• Interface PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (Pack: WxHxD) 80 x 22 x 2.3 mm
• Weight Max 9.0g Weight
• Storage Memory Samsung V-NAND 3-bit MLC
• Controller Samsung in-house Controller
• Cache Memory Samsung 1GB Low Power DDR4 SDRAM

• TRIM Support Supported
• S.M.A.R.T Support Supported
• GC (Garbage Collection) Auto Garbage Collection Algorithm
• Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support Not supported
• Device Sleep Mode Support Yes

• Sequential Read Up to 7,450 MB/s
• Sequential Write Up to 6,900 MB/s
• Random Read (4KB, QD32) Up to 1,200,000 IOPS
• Random Write (4KB, QD32) Up to 1,550,000 IOPS
• Random Read (4KB, QD1) Up to 22,000 IOPS
• Random Write (4KB, QD1) Up to 80,000 IOPS

• Average Power Consumption (system level) Average: 5.4 W*Maximum: 7.8 W (Burst mode)
• Power consumption (Idle) Max. 50 mW
• Allowable Voltage 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
• Operating Temperature 0 - 70 ? Operating Temperature
• Shock 1,500 G & 0.5 ms (Half sine)

• Installation Kit Not Available

• Management SW Magician Software for SSD management

• 5-Year Limited Warranty or 600 TBW Limited Warranty
