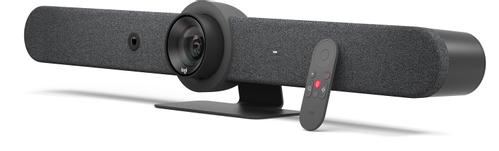

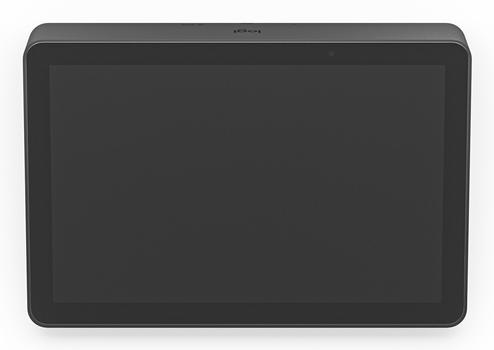

LOGITECH h - Video conferencing kit (Logitech Rally Bar, Logitech Tap IP) - RingCentral Certified, Tencent Meeting Certified, Certified for Microsoft Teams Rooms, Certified for Zoom Rooms - graphite
You have to log in to shop/see prices.
|
|
LOGITECH h - Video conferencing kit (Logitech Rally Bar, Logitech Tap IP) - RingCentral Certified, Tencent Meeting Certified, Certified for Microsoft Teams Rooms, Certified for Zoom Rooms - graphite
|
| Product colour | Graphite |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
| PTZ control | Yes |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Built-in speaker(s) | Yes |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audio beamforming | Yes |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| RMS rated power | 8 W |
| Microphone pick-up range | 4.5 m |
| Sample rates | 0 - 48 kHz |
| Driver diameter | 7 cm |
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface module RJ-45 ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Combined zoom | 15x |
| Horizontal field of view | 82.1° |
| Vertical field of view | 52.2° |
| Diagonal field of view | 90° |
| Remote control interface | Bluetooth |
| Display | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
| Display brightness | 400 cd/m² |
| Oleophobic coating | Yes |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Sound pressure level (max) | 90 dB |
| Number of microphones | 6 |
| Telepresence | No |
| Motion sensor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Master (outer) case gross weight | 13 kg |
| Master (outer) case length | 1013 mm |
| Master (outer) case width | 270 mm |
| Master (outer) case height | 327 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 64 BTU/h |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 4.74 A |
| DC input voltage | 19 V |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| Power plug type | Type C |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Interface module weight | 1 kg |
| Width | 910 mm |
| Depth | 160 mm |
| Height | 164 mm |
| Weight | 7.08 kg |
| Package width | 264 mm |
| Package depth | 1007 mm |
| Package height | 314 mm |
| Package weight | 13 kg |
| Power cable length | 1.5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Remote control included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |
