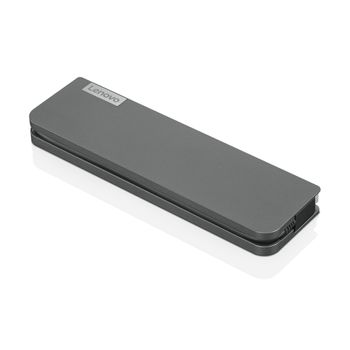

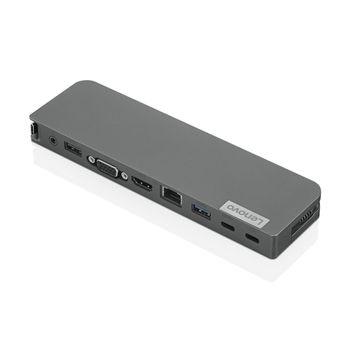

LENOVO USB-C Mini Dock_EU IN
You have to log in to shop/see prices.
|
|
LENOVO USB-C Mini Dock_EU IN
-
Ports
4
-
Display Ports
0
-
HDMI Ports
1
-
Network
1
|
Description
Specifications
The Lenovo Mini USB-C dock lets you expand your options and add powerful capabilities with just a single USB-C connection. Charge any legacy device with USB-A ports and effortlessly add an extra 4K or HD display, enterprise networking, and an external 3.5mm combo audio jack. Depending on many factors such as the processing capability of peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and is typically slower than the data rates as defined by the respective USB specifications: - 5 Gbit/s for USB 3.1 Gen 1; 10 Gbit/s for USB 3.1 Gen 2 and 20 Gbit/s for USB 3.2.
Docks support additional features such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad laptops, but such features may not be available on certain other Lenovo laptops or non-Lenovo branded laptops.
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Grey |
| Card reader integrated | No |
| Certification | CB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC |
| Power source type | AC |
| Power supply | 65 W |
| Windows operating systems supported | Windows 10 |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Width | 180 mm |
| Depth | 53 mm |
| Height | 17 mm |
| Weight | 156 g |
| Quantity per pack | 1 pc(s) |
| Package width | 215 mm |
| Package depth | 210 mm |
| Package height | 65 mm |
| Package weight | 565 g |
| Warranty card | Yes |
| AC adapter included | Yes |
| User guide | Yes |
| Harmonized System (HS) code | 84733020 |
